Steel Structure Cow House Shed Used At Agriculture Industry

Short Description:

Length*Width*Height: 80*12*5m

Usage: It is a steel structure cow house, used for a agriculture project.

Property: simple structure, low cost for both materials and construction.

Send email to us

Product Detail

Product Tags

Main steel structure frame

Standard Steel Structure Workshop (1)

The steel structure frame is made by round pipe, big thickness painting treated to prevent dairy manure gas corrode the steel. This type steel materials price is cheap, but works well after painting with a big thickness layer, quite suitable for cow house shed.

Steel support system

Tie bar support use angle steel materials, it is helpful to improve steel structure stability performance.

Horizontal and vertical support made by round steel, used to support steel beam and column.

Tension rod made by galvanized steel, used to support purlin.

Standard Steel Structure Workshop (1)

Wall & Roof covering system

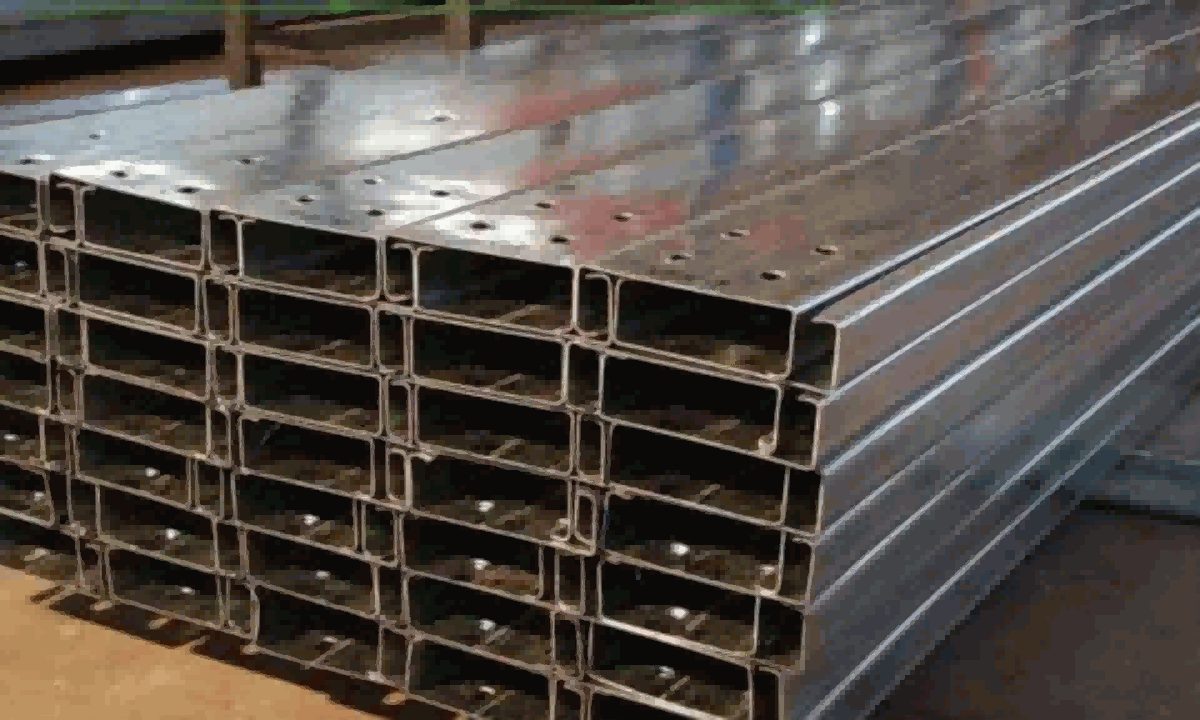

Roof purlin: galvanized C steel used as roof purlin, used to fix pulin with roof panel.

Roof sheet: dark gray steel sheet used as roof cover, the thickness is bigger than other standard project, because there is dairy manure gas, the gas will corrode the roof panel, only big thickness sheet and special painting process can solve the corrode problem, otherwise the the roof cover life time will be very short.

Additional system

Ventilator: there is ridge ventilator installed at the roof top, it is used to improve air convection performance, otherwise the manure gas gonna gather, and it is not good for the cow and worker that need enter in cow house, good performance ventilator is needed.

Channel: there is worker pass channel inside the cow house, it is used for worker feed the cow without enter in the house, quite necessary.

5.The bolt between column and beam use high strength bolt, it is a very strong connection parts. Foundation bolt use small bolt, we choose it because we have to consider the construction cost, it is a agriculture project, we have to control the project build cost small.
