Steel structure workshop

The workshop is used as a coffee production workshop, the owner is a global coffee dealer, have a small coffee factory in Djibouti and he want to update the workshop, we supply him all the workshop materials, it is a great project, we finished it by a very fast speed.

Project size: 42*20*6m

Location: Djibouti

Application: Coffee production workshop

Send email to us

Project Introduction

Steel structure workshop (3)

Steel structure workshop (4)

Steel structure workshop (2)

Steel structure workshop (1)

Design Parameter

Building designed wind loading speed :Wind load≥250km/h.
Building life time: 50 years.
Steel structure materials: standard Q235 steel.

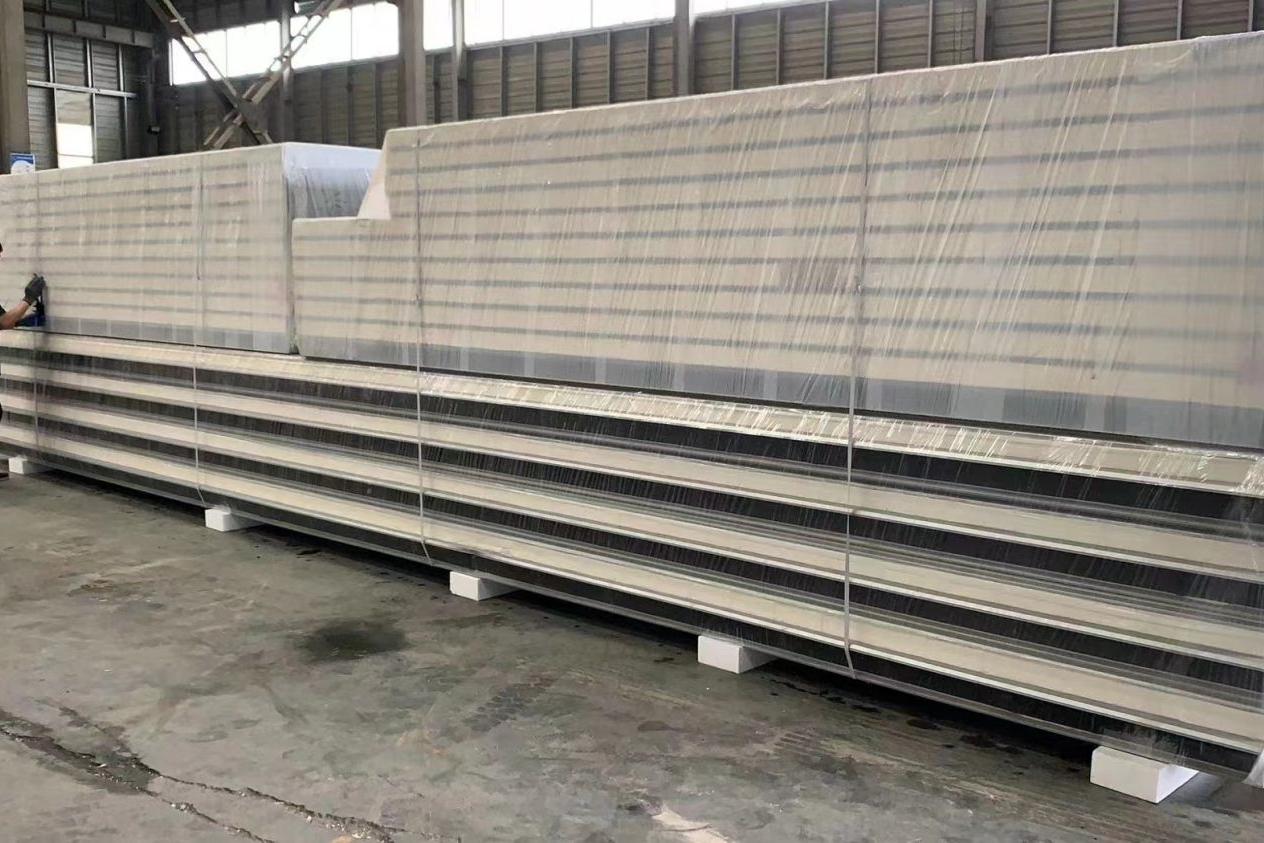

Roof&wall sheet: sandwich panel with thickness 50mm.
Roof&wall purlin(Q235 steel) :C section Galvanized Steel Purlin
Door & window: 2 big gate with size 4m*4m.

Production & Shipping

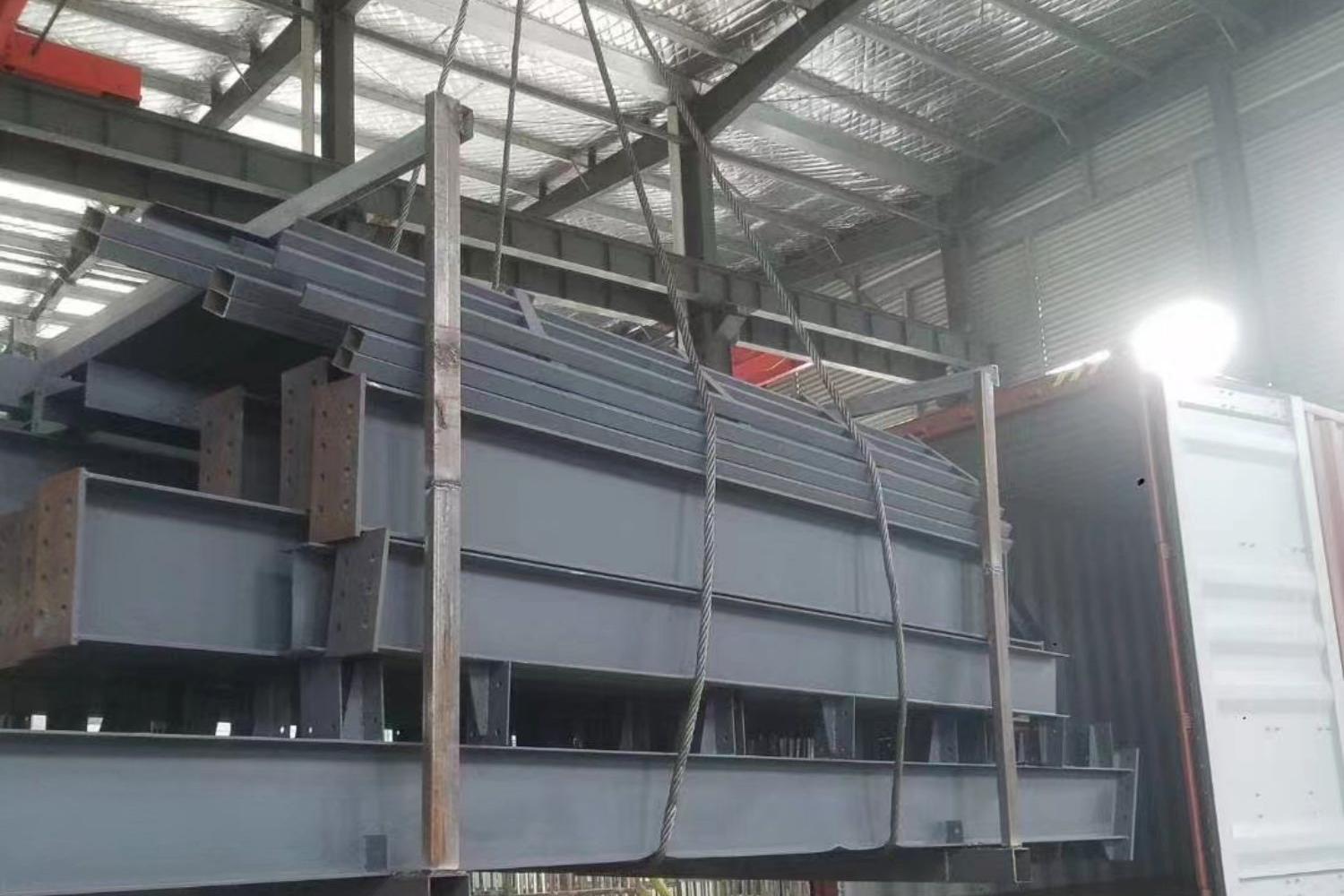

18 days finish all the production and ready to ship it.

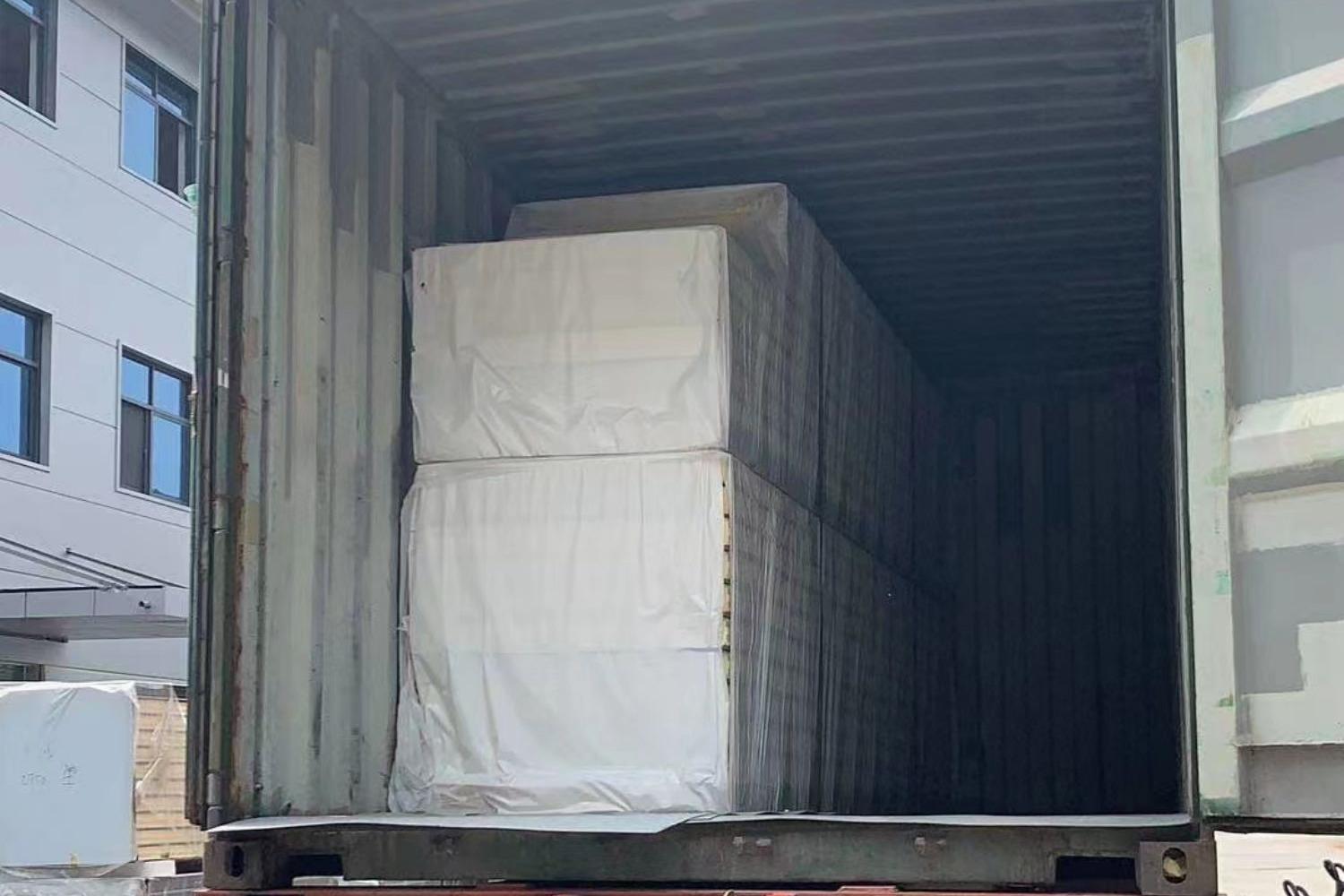

29 days from China to Djibouti, fast shipping line.

Installation

Client make the civil construction by himself, our project manager guide the local team on line, and provide him civil construction drawing, the process takes 22 days.

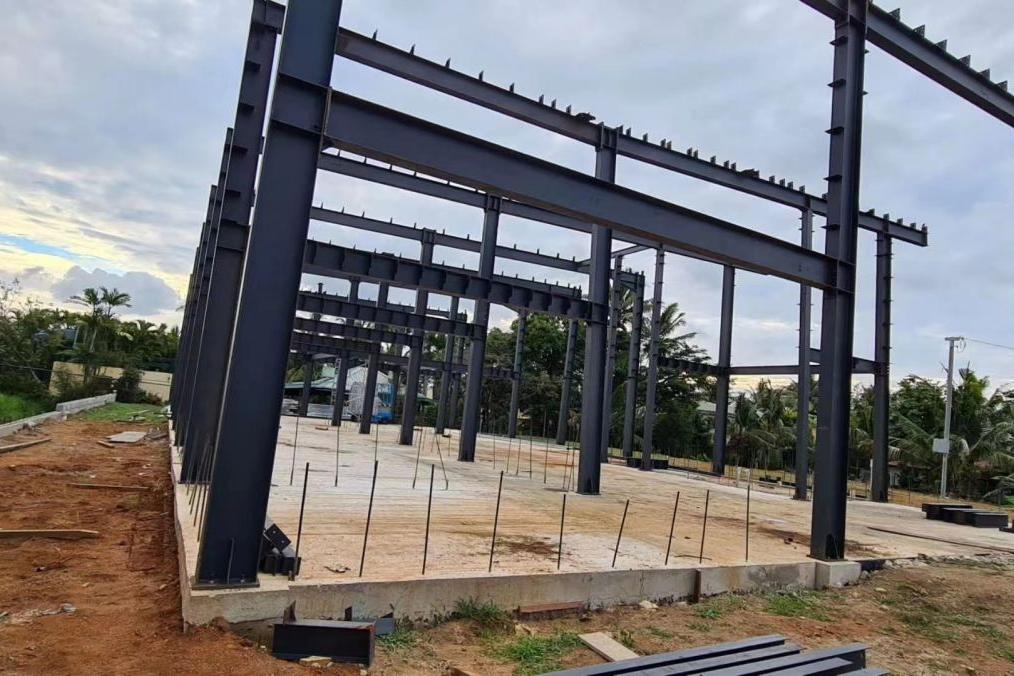

The assemble work takes only 13 days, we provide client all the assemble drawing and instrument.
