Ethiopia steel workshop

The steel structure workshop, located in Addis Ababa, the capital of Ethiopia, is a very famous aluminum products processing company.

Project size: 150*24*8M

Location: Addis Ababa ,Ethiopia

Application: Aluminum products factory

Send email to us

Project Introduction

The steel structure workshop, located in Addis Ababa, the capital of Ethiopia, is a very famous aluminum products processing company. The size of the workshop is 150m*24m*8m, with 2 sets 5-ton overhead crane system inside. . All exterior walls are made of colored steel sheets. The dimensions of 6 sets sliding doors are 4m*5m so It can let trucks entry and exit easily.

case4 (1)

case4 (3)

case4 (6)

case4 (5)

Design Parameter

The below information are the parameters of different parts:
Workshop building :Wind load≥0.5KN/M2 ,Live load≥0.5KN/M2 ,Dead load≥0.15KN/M2.

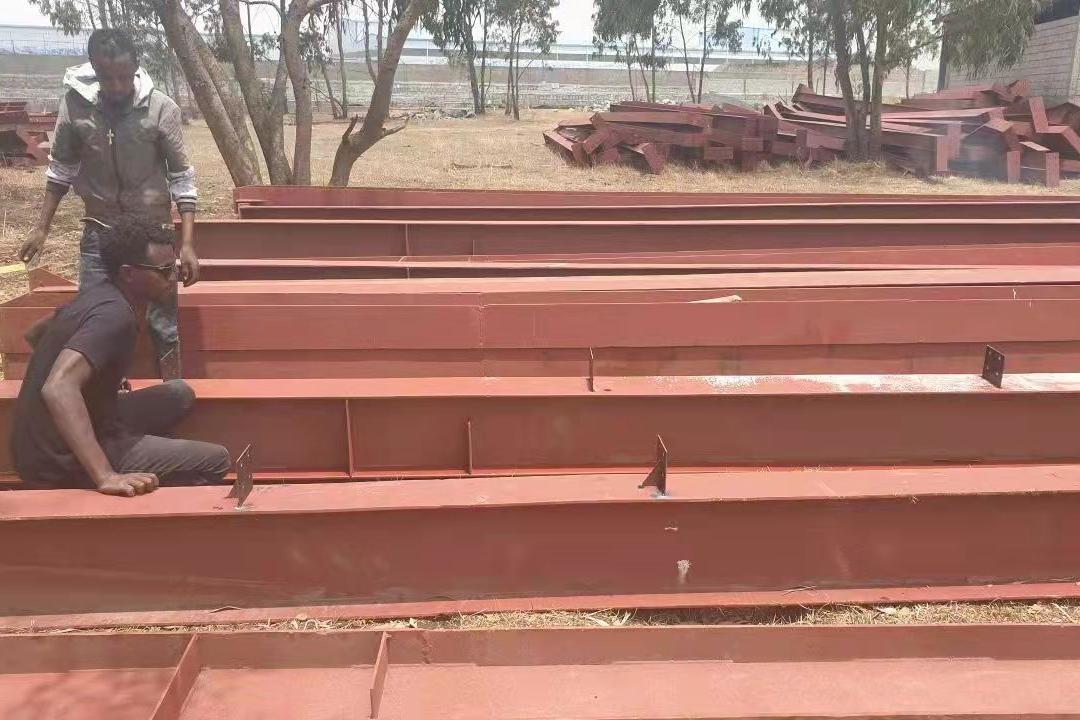

Steel beam &column(Q355 steel):2 layers epoxy antirust oil painting in 120μm thickness color is red
Roof&wall sheet:corrugated galvanized sheet(V-840 and V900) Blue color
Roof&wall purlin(Q345 steel) :Z section Galvanized Steel Purlin
Door size is 4*5m sliding door, which can be open and close easily.
This workshop has two sets overhead crane which is top brand in China.

Production & Shipping

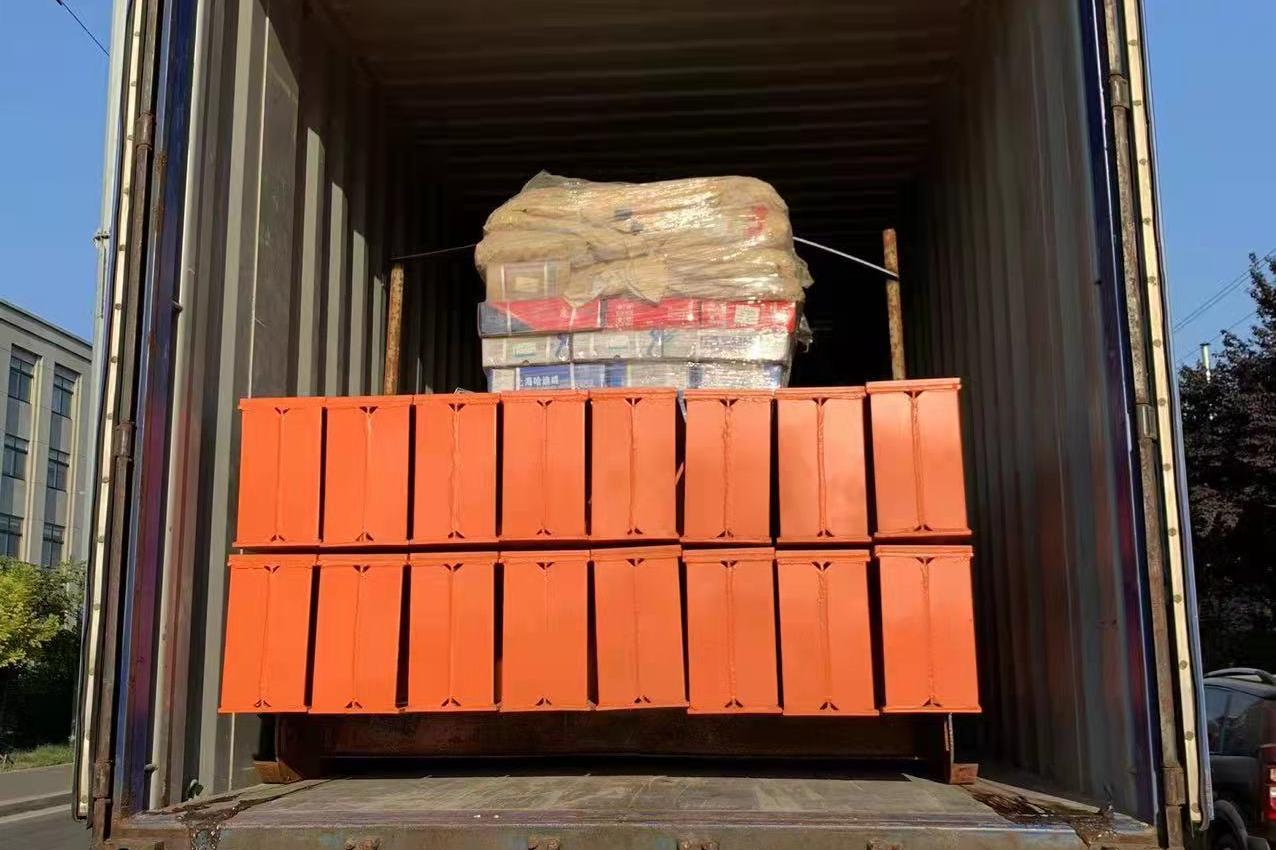

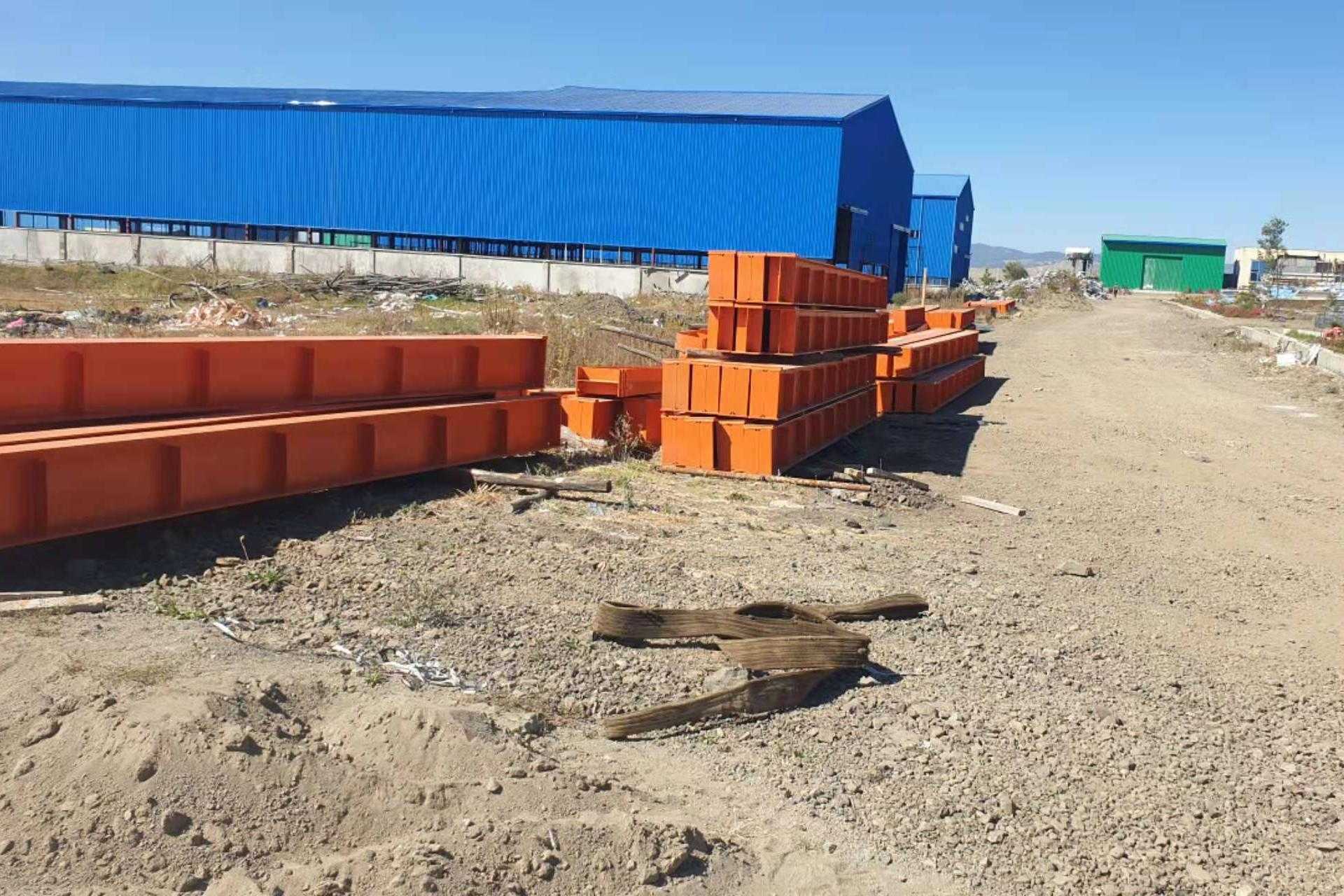

We prepared all steel parts for client during 33days, and packed loaded in 4*45HC+3*40HC containers. Shipping time is 42 days to Djibouti port. Client use ESL(Ethiopian Shipping and Logistics Service Enterprise) and get containers from Modjo/ commet DRY PORT,then use trucks take to his project site.

Installation

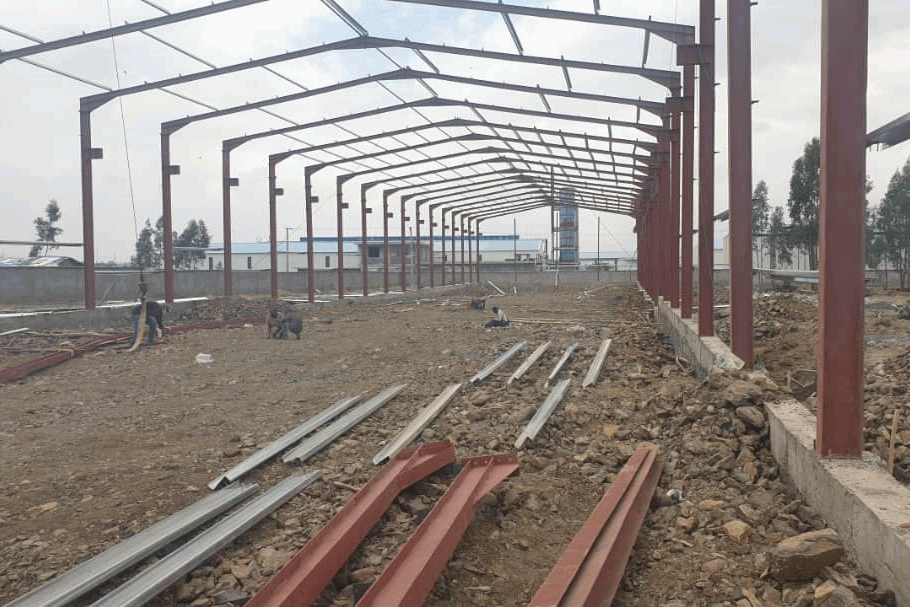

The owner used local installation team to install the steel structure parts, it cost 90 days totally to finish the foundation and installation work.

Execute Summary

From client contact us to project done ,It took a total of 165 day.This is a project with a very fast construction cycle for customers in Ethiopia. Our company are responsible for project design, material processing, and transportation, online support for installation.
